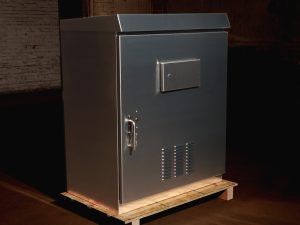

The Dudlik Large Single Door Enclosure gives easy access for installation and maintenance of a wide variety of electronic and electrical equipment. Suitable for indoor or outdoor use, these enclosures provide protection from the elements and vandalism. Standard configurations are available for NEMA 3R, 4, and 4X style applications. In addition to the listed sizes, we can fabrige to your custom specfications including many optional features such as custom holes, cutoutsm ventelation and more.
See the table below for various size options.
{modal url=/videos/DELSD301815.html}
{/modal}
Item # |
Traffic ID |
Cabinet Height (A) |
Cabinet Width (B) |
Cabinet Depth (C) |
Opening Height (D) |
| DELSD301815 | 2B | 30.00 in | 18.00 in | 15.00 in | 19.00 in |
| DELSD362015 | 3B | 36.00 in | 20.00 in | 15.00 in | 25.00 in |
| DELSD412516 | G | 41.00 in | 25.00 in | 16.00 in | 30.00 in |
| DELSD512516 | K | 51.00 in | 25.00 in | 16.00 in | 40.00 in |
| DELSD503017 | M | 50.00 in | 30.00 in | 17.00 in | 39.00 in |
| DELSD503617 | M36 | 50.00 in | 36.00 in | 17.00 in | 39.00 in |
| DELSD583017 | MSX | 58.00 in | 30.00 in | 17.00 in | 47.00 in |
| DELSD763017 | MXX | 76.00 in | 30.00 in | 17.00 in | 65.00 in |
| DELSD723617 | N/A | 72.00 in | 36.00 in | 17.00 in | 61.00 in |
| DELSD363624 | N/A | 36.00 in | 36.00 in | 24.00 in | 25.00 in |
| DELSD443624 | N/A | 44.00 in | 36.00 in | 24.00 in | 33.00 in |
| DELSD553826 | P38 | 55.00 in | 38.00 in | 26.00 in | 44.00 in |
| DELSD554426 | P44 | 55.00 in | 44.00 in | 26.00 in | 44.00 in |
| DELSD772826 | R38 | 77.00 in | 38.00 in | 26.00 in | 66.00 in |
| DELSD774426 | R44 | 77.00 in | 44.00 in | 26.00 in | 66.00 in |
